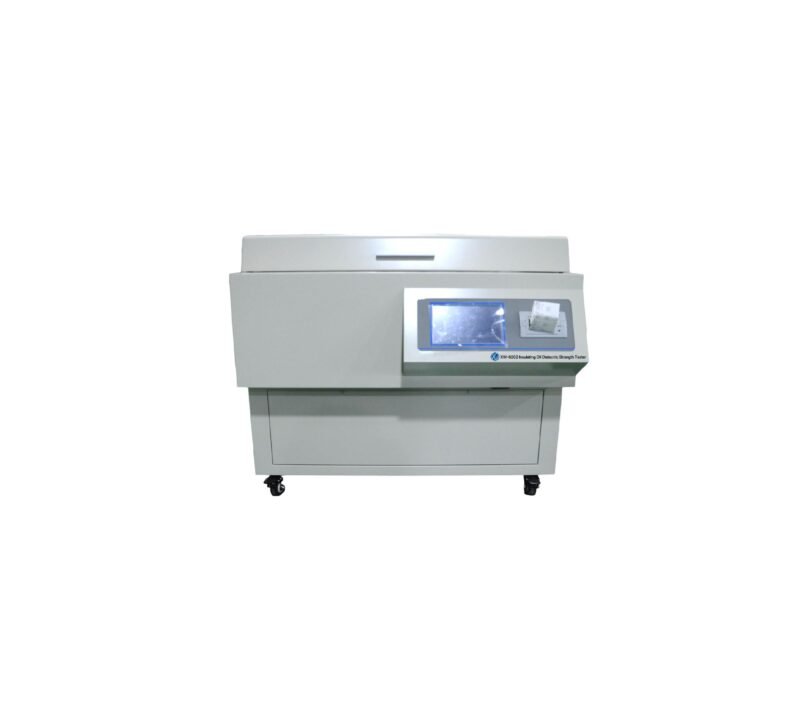

Oil BDV Tester/ Insulating Oil Breakdown Voltage Tester(80KV & 100KV)
About the product
This type of insulation oil dielectric strength tester is a highly accurate, fully digital industrial instrument carefully developed by all the scientific and technical personnel of our company according to the relevant standards and regulations of insulation oil testing, giving full play to their own advantages, after many field tests and long-term unremitting efforts. The machine is easy to operate and beautiful in shape. Due to the use of automatic digital microcomputer control, the measurement accuracy is high, the anti-interference ability is strong, safe and reliable.
Instrument characteristics
1. The instrument adopts large-capacity single-chip microcomputer control, stable and reliable operation;
2. The instrument is equipped with temperature and humidity timely clock display function, and can be customized for infrared oil temperature measurement.
3. A wide range of watchdog circuits is installed in the instrument to eliminate the phenomenon of crash;
4. A variety of standard options, the instrument program is equipped with GB/T507-1986, GB/T507-2002, DL429.9, IEC156 and self-programming operation, can adapt to a variety of choices of different users;
5. The instrument oil cup is made of special glass and polymer materials, which are finely processed to prevent oil leakage and corrosion.
6. The unique high-voltage sampling design of the instrument allows the test value to enter the A/D converter directly, avoiding the error caused in the analog circuit, so that the measurement results are more accurate;
7. The instrument has overcurrent, overvoltage, short circuit, and other protection functions, and has a strong anti-interference ability; electromagnetic compatibility is good;
8. Chinese and English can be switched at will to meet any customer needs;
9. The instrument itself has the data analysis function to assist the staff in determining the quality of the oil;
10. USB data transfer (optional);
Technical index
1. Booster capacity 1.5kVA
2. Boost speed 0.5kV/ S-5.0kV /s (every 0.5 increments) 10 speed options
Error 0.2kV/s
3. Output voltage 0 ~ 80 kV or 0 ~ 100 kV
4. Voltage accuracy (2% reading +2 words)
5. Power distortion rate < 1%
6. Electrode gap standard: 2.5 mm
7. Test times: 6 times (1-9 times optional)
8. Rest time 900S(0-999 S optional)
9. Interval rest time 300S(0-999 S optional)
10. Mixing time 15S (0-255 S optional)
11. Overall dimensions 800mm× 660mm × 710mm
12. Weight: 75 kg
Service conditions
- The ambient temperature ranges from 0 to 40 ° C
- Relative humidity ≤85%
- Working power AC 220V (1 ± 10%)
- Power frequency 50 Hz (1 ± 10%)
- Power consumption < 200 W
