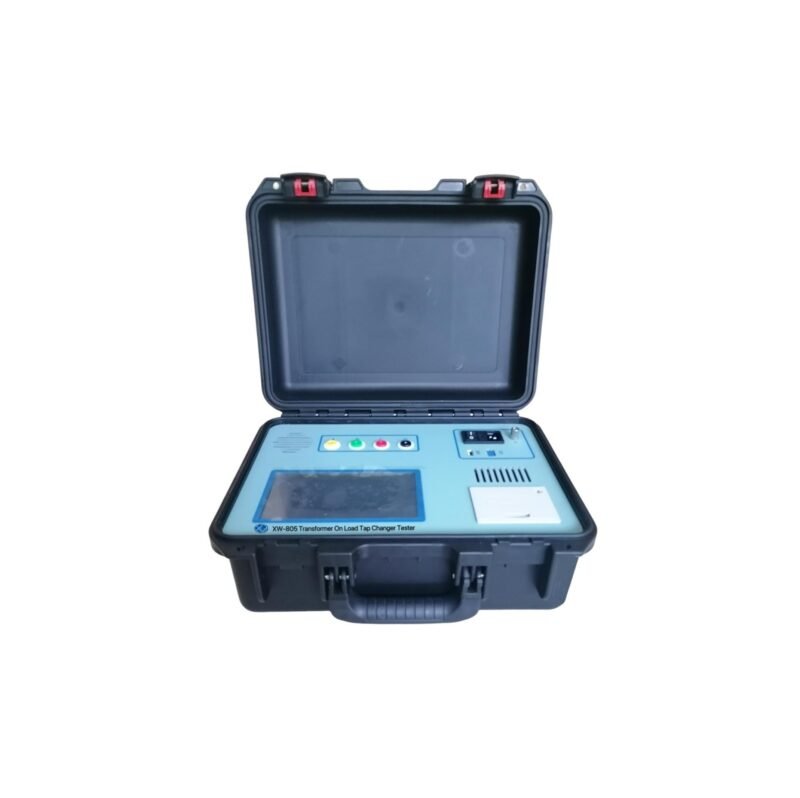

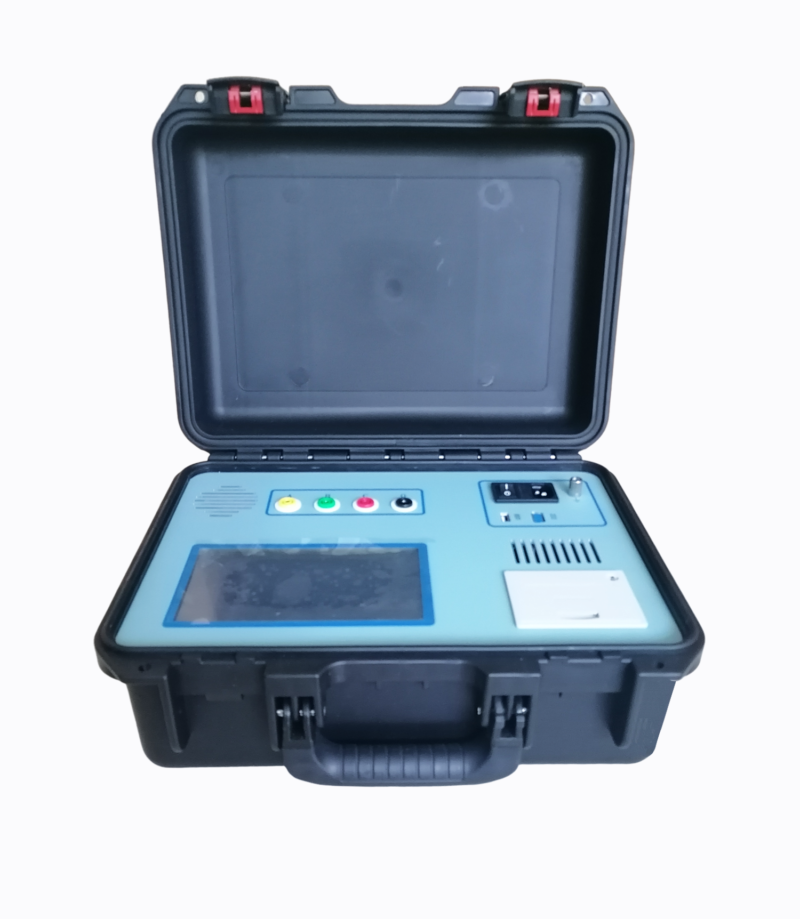

XW-805 Transformer On Load Tap Changer Tester
About the product
The on-load tap changer is the only moving part connected to the transformer circuit, so the detection of the on-load tap changer attracts more and more attention. In the Regulation of Power Equipment Handover and Preventive Test, it is required to check the action sequence of the on-load tap changer and measure the switching time. The instrument is mainly used to measure the transient waveform, transient time, transient resistance value at each moment, three-phase synchronization, and so on of the transformer on-load tap changer.
The instrument has a high degree of intelligence, all-Chinese menu prompts, and simple operation. The instrument has the advantages of small volume, light weight, and strong anti-interference ability, which greatly reduces the labor intensity of field workers. It is an ideal instrument for power generation and supply units and transformer manufacturing industries to ensure safe production and improve product quality.
Functional characteristics
- The instrument has large output current and light weight.
- Test Yn, Y, and D transformers, and the resistance value is displayed directly without conversion.
- Can be measured with or without winding.
- Waveform display automatically adjusts the amplitude of resistance and time value according to the sampling value.
- With a perfect protection circuit and strong reliability.
- Seven-inch high-brightness touch color LCD, clear display under strong light, full touch screen operation, free switching between Chinese and English.
- Built-in large-capacity lithium battery, without external power supply (optional).
- 500 sets of data can be automatically saved internally.
Technical parameter
- Output currents: 1.0A, 0.5A and 0.2A.
- Measuring range transition resistance: 0.3 Ω ~ 20 Ω (1.0A) 5 Ω ~ 40 Ω (0.5A) 20Ω～100Ω(0.2A)
- Transition time: 0 ~ 320 ms
- Open circuit voltage:24V
- Measurement accuracy transition resistance: (5% reading 0.1 Ω) Transition time: (0.1% reading ±0.2ms)
- Sampling rate:20kHz.
- Storage mode: local storage
- Overall dimensions: main machine: 360*290*170 (mm) box: 360*290*170(mm)
- The weight of the instrument is 6KG for the main engine and 4.5KG for the box.
- The length of the test line is 13 meters as standard and can be customized.
Conditions of use
- Ambient temperature: -10℃ ~ 50℃
- Environmental humidity: ≤85%RH
- Working power supply: AC 220v 10%
- Power frequency:50±1Hz
