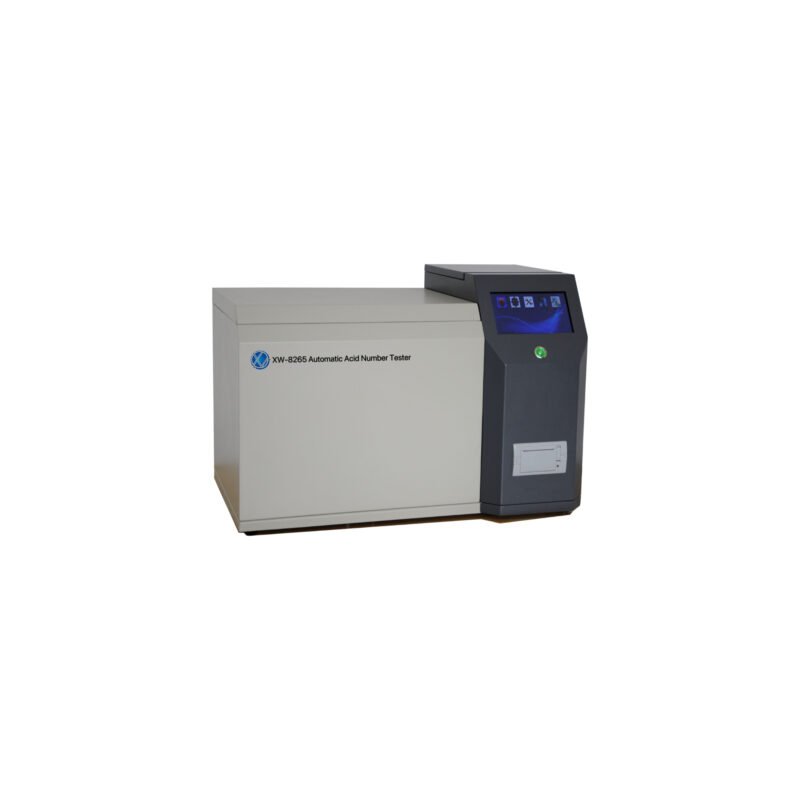

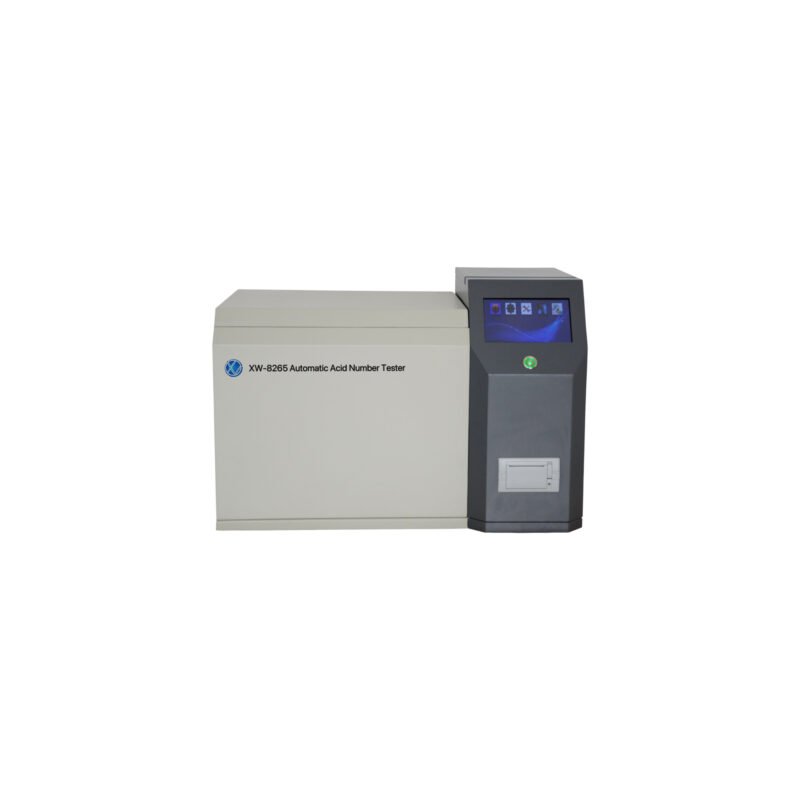

XW-8265 Automatic Acid Number Tester / Water Soluble Acid PH Tester
About the product
The instrument (colorimetric method) is designed and manufactured according to the national standard of the People’s Republic of China GB/T7598-2008 test method for water-soluble acid of transformer oil in operation and related standards. With a large-screen LCD and microprocessor control, it can automatically complete heating, constant temperature, oscillation, sampling, testing, cleaning, printing, and other functions according to the user’s set conditions, and can measure 1-6 samples at a time, greatly shortening the user’s test time.
Instrument characteristics
1. The instrument according to GB/T7598-2008 standard design and development, can accurately detect transformer oil, turbine oil, oil and other oil products water-soluble acid automatic test instrument.
2. Color touch LCD screen easy to operate through the touch LCD screen.
3. The pH value is determined by the colorimetric method.
4. The degree of automation of the instrument is high; only the oil and water are injected according to the standard provisions, and the instrument automatically completes the heating, oscillation, static discharge, oil-water separation, color development, color comparison, display, and print measurement results and other functions.
5. One time can process and complete the test of 1-6 samples in sequence.
6. It adopts an integrated design, making the appearance more beautiful. 7-inch large-screen display, simpler operation, and more convenient use; the built-in reagent compartment ensures that the needles are not exposed to air, which is both aesthetically pleasing and prevents contamination, benefiting users—customizable upper computer system. The sampling is physically accurate, and the testing accuracy is high.
Technical indicators
Measuring range: PH=3.6 ~ 7.0
Minimum display unit: 0.1
Constant temperature accuracy: ±2℃
Normal use conditions:
Ambient temperature: (5 ~ 45) ℃
Relative humidity: ≤ 85%
Power supply: AC (220± 10%) V, 50HZ±1HZ
Dimensions: length 660 mm; Width 415mm; Height 470 mm
Weight: 36kg
Conditions of use
1. The ambient temperature ranges from 0 to 40 ° C
2. Relative humidity ≤85%
3. Working power: AC 220V ± 20%
4. Power supply frequency: 50 Hz ± 5 Hz
5. Power consumption < 600 W
