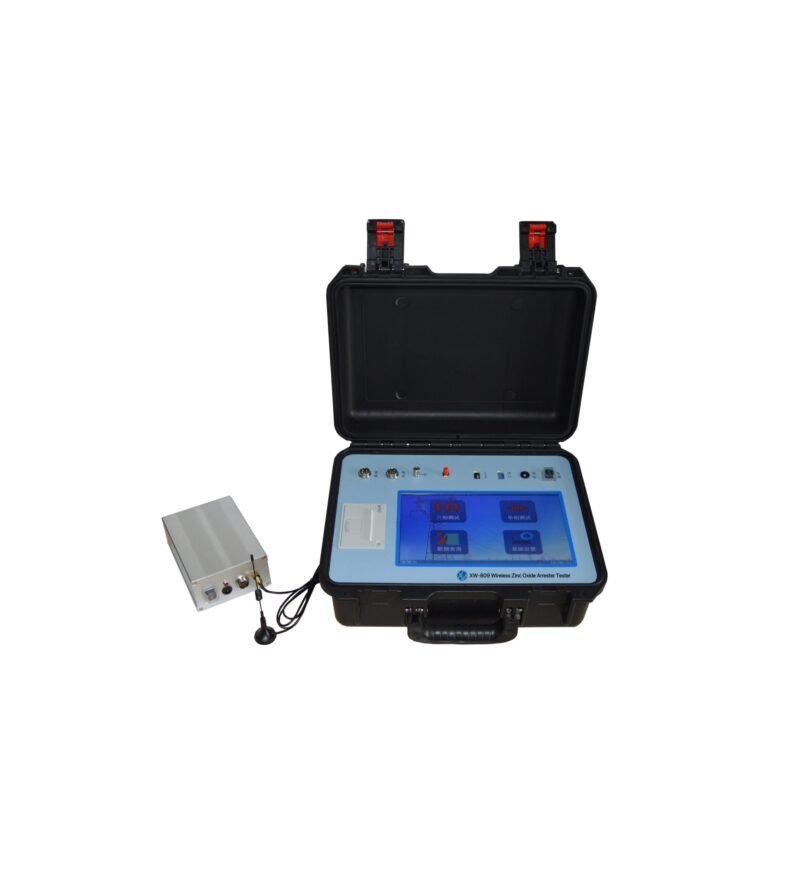

XW-809 Wireless Zinc Oxide Arrester Tester
About the product
The tester for zinc oxide arrester is a special instrument for testing various related electrical parameters of the arrester in the field and laboratory, which is widely used in online monitoring of zinc oxide arrester in the field (live test) and laboratory (power outage maintenance). The key technique meets the People’s Republic of China (PRC) electric power industry standard “DL 474.5-92 Field Insulation Test Implementation Guide-Lightning Arrester Test”. This instrument adopts advanced technologies such as microcomputer sampling and control, and can measure the full current, third harmonic, resistive current, peak value of resistive current, capacitive current, and active power of zinc oxide arrester under power frequency voltage. And display the waveforms of voltage and current and prints out the test data. A large-screen LCD and Chinese character menu prompt operation are adopted, which makes the man-machine exchange function stronger and provides on-site waveform display. This instrument has the characteristics of simple wiring, high measurement accuracy, and strong reliability. The instrument is small in size, light in weight, and integrated in design, which is convenient for carrying and field work.
Technical Parameter
- Voltage and current parameters:
| Measurement item | Test range | Test accuracy |
| Full current | 0-20mA | (reading ×5%+5uA) |
| Resistive current | 0-20mA | (reading ×5%+5uA) |
| Capacitive current | 0-20mA | (reading ×5%+5uA) |
| current harmonics | 0-20mA | (reading ×10%+10uA) |
| Reference voltage | Maximum effective value of 250V | (reading ×5%+0.5V) |
| Voltage harmonics | Maximum effective value of 250V | ±+/-(reading ×10%) |
- Working temperature:-10℃ ~ 40℃
- Ambient humidity: ≤85% without condensation.
- Storage temperature:-20℃ ~ 50℃
- Overall dimensions: main engine 360*290*170(mm) box 425*335*210(mm)
- Instrument weight: 4.5 kg for the main engine and 8.4 kg for the box.
- Test line length: 10m is standard and can be customized.
Functional characteristics
1、Seven-inch high-brightness touch color LCD, clear display under strong light, full touch screen operation, free switching between Chinese and English.
2 、 High-precision sampling and processing circuit and advanced Fourier harmonic analysis technology make the data more reliable.
3、It has the function of measuring harmonic content, and can measure single-phase or three-phase simultaneously.
4、It has the function of peak output of fundamental wave of resistive current.
5、The instrument has built-in large-capacity memory. It can store a lot of recorded information such as test data, waveforms, and harmonics. Can save 200 groups of measurement records, and the saving mode is cyclic updating mode.
6、The instrument is equipped with a USB interface, which can store any group of test records (the capacity is limited by the size of the USB flash drive).
7、The instrument voltage test line is equipped with a safety anti-miswiring line, and the instrument voltage and current plug has an anti-miswiring function.
8、The instrument is equipped with a wireless module, which can collect voltage wirelessly and cooperate with the host computer for wireless measurement.
9、The instrument has a built-in high-precision real-time clock, which can be used for date and time calibration.
10、The instrument is equipped with a high-speed miniature thermal printer, which can print measurement data.
11. The instrument has a built-in large-capacity lithium battery, which can work continuously for 6 hours.
12. The instrument can use an Android phone or tablet; pay attention to the WeChat official account, download the special APP, control the instrument through special software, and store and upload test data for easy access.
XW-809 Wireless Zinc Oxide Arrester Tester
